Lower Nicola Watershed Connectivity Restoration Plan: 2021 - 2040

Situation Analysis

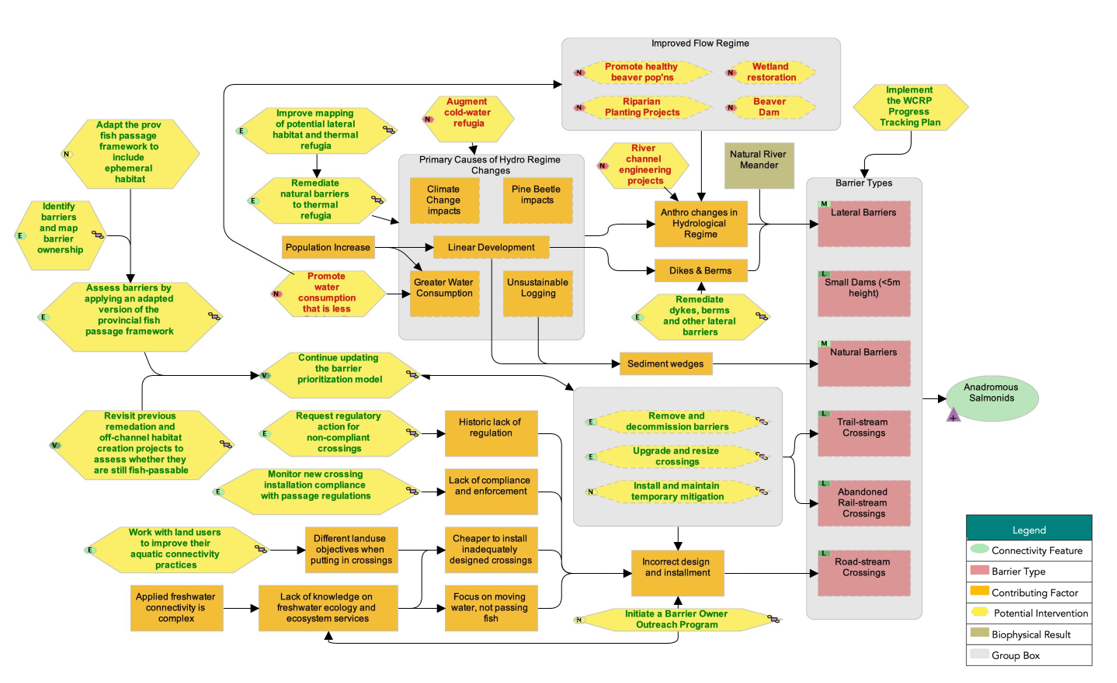

The following situation model was developed by the WCRP planning team to “map” the project context and brainstorm potential actions for implementation. Green text is used to identify actions that were selected for implementation (see Strategies & Actions), and red text is used to identify actions that the project team has decided to exclude from the current iteration of the plan, given that they were either outside of the project scope or were deemed to be ineffective by the planning team.

Strategies & Actions

In 2021, the Lower Nicola River watershed and many other parts of BC experienced devastating forest fires and floods. Prior to this, CWF worked with the Scw’exmx Tribal Council to assess high-ranking structures and undertake preliminary assessments of potential lateral barriers identified by local experts and knowledge holders. Recognizing that there may be other urgent restoration priorities in the watershed, the Planning Team decided that the areas of focus over the short term would be on reviewing LiDAR (light detection and ranging), aerial imagery, and field assessments to determine immediate lateral connectivity needs (see Action 1.5 below), responding to new barriers that may have developed in the watershed following the atmospheric river event, and addressing other emerging needs in the watershed. The Planning Team began focusing on the remaining strategies and actions in the table below Table 1 in 2023.

The planning team identified five broad strategies to implement through this WCRP: (1) lateral barrier rehabilitation (priority on reconnecting thermal refugia), (2) stream crossing rehabilitation, (3) dam rehabilitation, (4) barrier prevention, and (5) partner development. Individual actions were qualitatively evaluated based on the anticipated effect each action will have on realizing on-the-ground gains in connectivity. Effectiveness ratings are based on a combination of “Feasibility” and “Impact.” Feasibility is defined as the degree to which the project team can implement the action within realistic constraints (financial, time, ethical, etc.), and Impact is the degree to which the action is likely to contribute to achieving one or more of the goals established in this plan.

Strategy 1: Lateral Barrier Rehabilitation

**Table** 1: Strategy 1
ID	Actions	Details	Feasibility	Impact	Effectiveness
1.1	Rehabilitate dykes, berms, and other lateral barriers	The group selected a feasibility rating of High based on the assumption that our focus will be on smaller and cheaper projects, such as reconnecting ephemeral habitat and maintenance around the railroad dyke to reconnect wetland habitat.	High	Very high	Effective
1.2	Rehabilitate natural barriers to lateral connectivity	This can include various methods, such as beaver dam analogues.	High	Very high	Effective
1.3	Knowledge Gap: Improve mapping of lateral habitat and thermal refugia	Thermal imagery collected via drones could be used to map thermal refugia.	High	High	Effective
1.4	Knowledge Gap: Revisit previous rehabilitation and off-channel habitat creation projects to assess whether they are still fish-passable		Very high	Very high	Very effective
1.5	Review LiDAR, aerial imagery, and field assessments to determine immediate lateral connectivity needs.		Very high	Very high	Very effective

Strategy 2: Crossing Rehabilitation

**Table** 2: Strategy 2
ID	Actions	Details	Feasibility	Impact	Effectiveness
2.1	Remove and decommission barriers		High	Very high	Effective
2.2	Upgrade and resize crossings	Examples include installing larger culverts, replacing closed- with open-bottom culverts, or upgrading from culverts to bridges.	Very high	High	Effective
2.3	Install and maintain temporary mitigation	This strategy entails retrofitting structures to provide passage until the structure can be replaced or decommissioned.	Medium	High	Need more information
2.4	Initiate a barrier owner outreach program	This can include reaching out to the Cattleman's Association, as well as potentially working with producers to adapt water-management practices. The outputs and materials generated could be exported outside the watershed to assist other watershed organizations with landowner engagement as well.	High	Medium	Need more information
2.5	Request regulatory action for non-compliant crossings	Request provincial and federal agencies to require that targeted, high-priority barriers be remediated.	High	High	Effective
2.6	Knowledge Gap: Identify barriers and map barrier ownership		High	Very high	Effective
2.7	Knowledge Gap: Continue updating the structure prioritization model	The model process will be finalized, and priorities will be updated as new information becomes available.	Very high	Very high	Very effective
2.8	Knowledge Gap: Adapt the provincial fish passage framework to account for ephemeral habitat	Ephemeral habitat is especially important in the Lower Nicola River and need to be accounted for in habitat surveys and evaluated on a case-by-case basis.	High	Very high	Effective
2.9	Knowledge Gap: Assess barriers by applying an adapted version of the provincial fish passage framework	The first three steps are, (1) barrier assessments, (2) habitat confirmations (including of ephemeral habitat), and (3) rehabillitation designs.	High	Very high	Effective

Strategy 3: Dam Rehabilitation

**Table** 3: Strategy 3
ID	Actions	Details	Feasibility	Impact	Effectiveness
3.1	Remove dams		Medium	Very high	Need more information
3.2	Install fish passage		Medium	High	Need more information
3.4	Knowledge Gap: Continue updating the structure prioritization model	The model process will be finalized, and prioritizations will be updated as new information becomes available. This can also include data related to flows.	Very high	Very high	Very effective
3.5	Knowledge Gap: Assess dams to determine whether they exist and are truly blocking fish habitat	Focus on identifying ownership of priority dams that we want to rehabilitate in the short-term.	Very high	High	Effective
3.6	Knowledge Gap: Identify and map dam ownership		Very high	Very high	Very effective

Strategy 4: Barrier Prevention

**Table** 4: Strategy 4
ID	Actions	Details	Feasibility	Impact	Effectiveness
4.1	Work with land users to improve their aquatic connectivity practices	This can be done through the barrier ownership program, or for landowners that do not currently own barriers, this could include encouraging better consultation before crossings are installed.	High	High	Effective
4.2	Monitor new crossing installation compliance with passage regulations		Very high	High	Effective

Strategy 5: Partner Development

**Table** 5: Strategy 5
ID	Actions	Details
5.1	Engage and explore integration with existing regional initiatives	Engage and coordinate with the Nicola Watershed Governance Project and Fraser Basin Council initiatives (e.g., RAMS) to inform decision-making and implementation related to the strategies developed in this plan. These strategies will be shared with local First Nations, DFO, and others to inform coordinated efforts to restore fish productivity in the watershed Connectivity work will be incorporated where appropriate to achieve the greatest returns and longevity of benefits.

Theories of Change & Objectives

Theories of Change explicitly state assumptions about how the identified actions will achieve gains in connectivity and contribute to achieving the goals of the plan. To develop theories of change, the planning team made explicit assumptions for each strategy to clarify the rationale used for undertaking actions and provided an opportunity for feedback on invalid assumptions or missing opportunities. The theories of change are results oriented and clearly define the expected outcome. The following Theories of Change models were developed by the WCRP planning team to “map” the causal (“if-then”) progression of assumptions of how the actions within a strategy work together to achieve project goals.

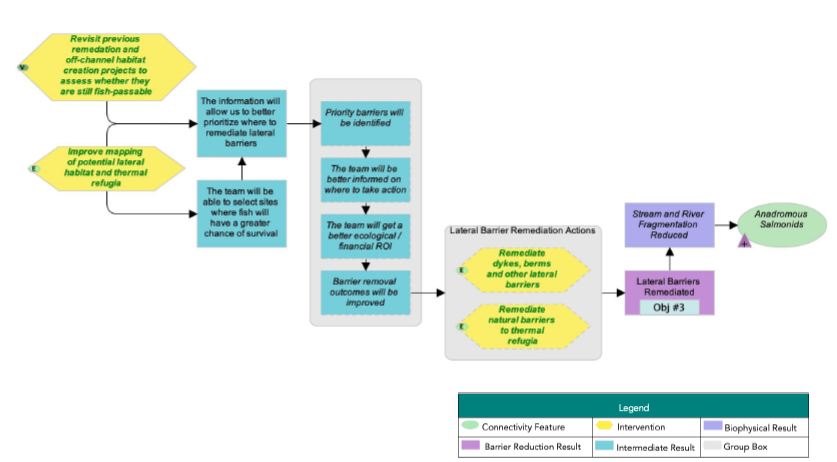

**Figure** 2: Theories of change model developed by the planning team for the actions identified under Strategy 1: Lateral Barrier Rehabilitation in the Lower Nicola River watershed.

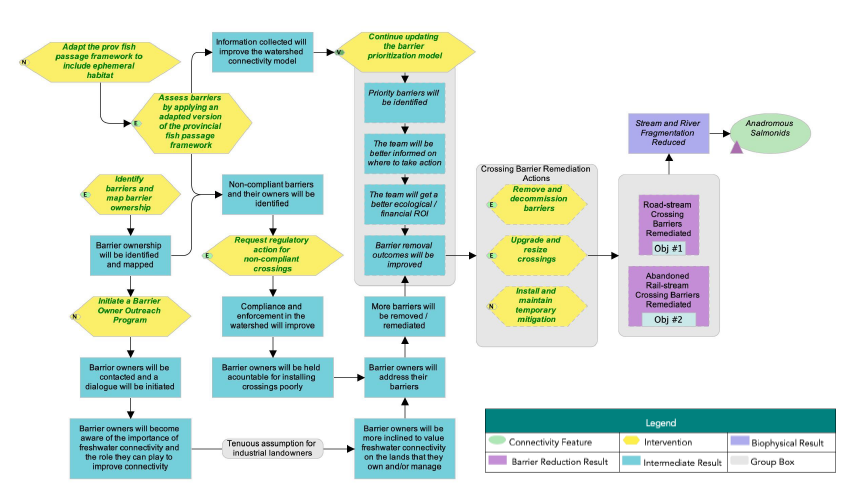

**Figure** 3: Theories of change model developed by the planning team for the actions identified under Strategy 2: Stream Crossing Rehabilitation in the Lower Nicola River watershed.

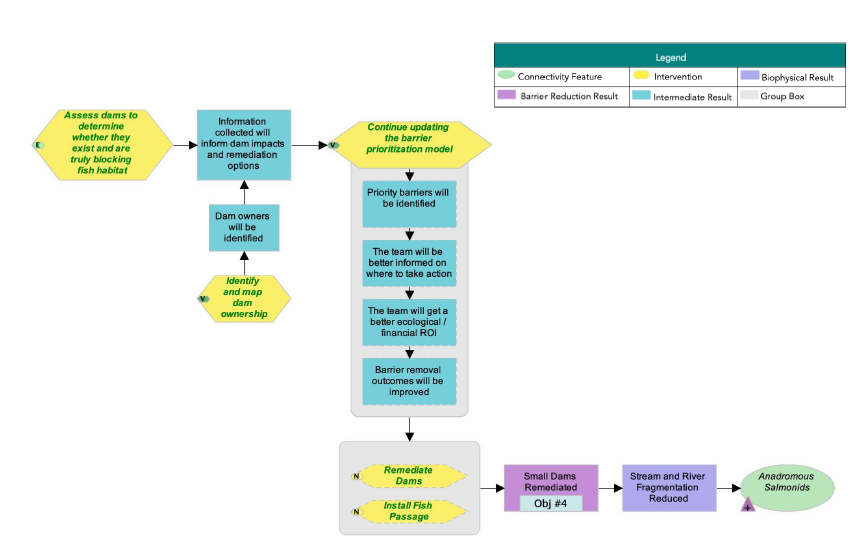

**Figure** 4: Theories of change model developed by the planning team for the actions identified under Strategy 3: Dam Rehabilitation in the Lower Nicola River watershed.

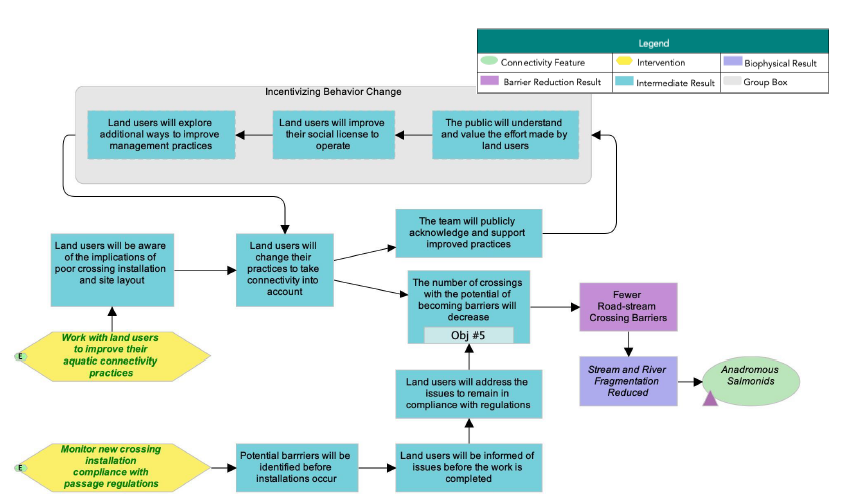

**Figure** 5: Theories of change model developed by the planning team for the actions identified under Strategy 4: Barrier Prevention in the Lower Nicola River watershed.

Funding Sources

Table 6:
Potential funding sources for plan implementation in the Lower Nicola River watershed. The Canadian Wildlife Federation and the planning team can coordinate proposal submission through these sources.
Funding Source	Spending Restrictions and Other Consideration
Land Based Investment Strategy	Assessment and rehabilitation of fish passage using provincial strategic approach. Primarily for rehabilitation of Ministry-owned/orphaned barriers on forest service roads.
MOTI Environmental Enhancement Fund	Fish and wildlife passage improvements and restoration at stream and animal crossings at Ministry Of Transportation and Infrastructure roads including culvert retrofits and replacements to restore passage for aquatic species and wildlife. Primarily for crossings linked to highway infrastructure.
Pacific Salmon Foundation's Community Salmon Program	For projects supporting the protection, conservation and enhancement or rehabilitation of Pacific salmon and their habitat. Funding for volunteer and not-for-profit community-based groups. Applicant must have a significant volunteer component to their group and to the project. Requires 50% match for funding (volunteer, in-kind, donation or other grants).
Pacific Salmon Commission Southern Fund	Supports three activities: (1) develop improved information for resource management; (2) rehabilitate and restore marine and freshwater habitat; and (3) enhance wild stock production through low technology techniques. Emphasis for funding is on stocks of conservation concern, particularly those contributing to a fishery and stocks of bilateral fishery relevance.
Habitat Conservation Trust Foundation Fish & Wildlife Grants	Projects that focus on freshwater wild fish, native wildlife species and their habitats and have the potential to achieve a significant conservation outcome while maintaining or enhancing opportunities for fishing, hunting, trapping, wildlife viewing and associated outdoor recreational activities. Primary focus is on provincially managed fisheries such as steelhead and Westslope Cutthroat Trout. Requires 50% funding match.
Environmental and Climate Change Canada Environmental Damages Fund	Direct funds received from fines, court orders and voluntary payments to priority projects that will benefit Canada’s natural environment, under four categories of improvement (in order of preference): (1) restoration, (2) environmental quality improvement, (3) research and development, and (4) education and awareness.
Habitat Stewardship Program for Aquatic Species at Risk	Program for non-profits, Indigenous governments, and academic institutions for activities that align with recovery actions identified in SARA recovery documents and/or COSEWIC assessment documents. Project must address one or more of three broad categories: (1) important habitat for aquatic species at risk is improved and/or managed to meet their recovery needs; (2) threats to aquatic species at risk and/or their habitat are stopped, removed, and/or mitigated; and (3) collaboration and partnerships support the conservation and recovery of aquatic species at risk. Limited to at-risk species listed under COSEWIC and/or SARA as threatened, endangered, or special concern.
Canada Nature Fund for Aquatic Species at Risk	Funding program aimed at addressing priority threats for aquatic species at risk listed as endangered, threatened or Special Concern by COSEWIC, as they align with existing federal, provincial or other local recovery plans. Limited to species in the Columbia and Fraser basins in BC, among other priority areas across Canada. Focus on multi-year, multi-partner initiatives that apply an ecosystem or multi-species approach and create a legacy by enabling recovery actions that carry beyond the life of the funding program. Amounts from $100K-$1M available per year.
BC Salmon Restoration and Innovation Fund	Funding for Indigenous enterprises, academia, industry associations, stewardship groups and commercial groups to support initiatives that support the protection and restoration of wild Pacific salmon and other BC fish stocks or ensure fish and seafood sector in BC is environmentally and economically sustainable. Five main priorities including species of concern rebuilding through habitat restoration with priority for projects that are part of a watershed-scale restoration plan/prioritization effort; build on successful previous restoration efforts; focus on critical habitat and/or the rehabilitation of natural ecosystem processes.
Aboriginal Fund for Species at Risk	Program for Indigenous groups for activities that align with recovery actions identified in SARA recovery documents and/or COSEWIC assessment documents for species listed as Endangered, Threatened, or Special Concern by SARA or COSEWIC. Project must address one or more of four broad categories: (1) habitat for species at risk is improved and/or managed to meet their recovery needs; (2) threats to species at risk and/or their habitat are stopped, removed and/or mitigated; (3) collaboration, information sharing and partnership between Indigenous communities, governments and organizations and other interested parties (e.g. federal/provincial/territorial governments, academia, industry, private sector) is enhanced; and (4) capacity within Indigenous communities, to lead in the stewardship of species at risk and contribute to broader SARA implementation, is strengthened.
Union of B.C. Municipalities Community Works Fund	Funding available to local governments to be allocated for a variety of municipal projects/initiatives, including local roads/bridges and disaster mitigation.
Disaster Mitigation and Adaptation Fund	For those projects where flood risk is high: funding available to local, regional and provincial governments, private sector, non-profit organizations, and Indigenous groups for projects aimed at reducing the socio-economic, environmental and cultural impacts triggered by natural hazards and extreme weather events and taking into consideration current and future impacts of climate change in communities and infrastructure at high risk. Includes both new construction of public infrastructure and modification/reinforcement of existing infrastructure. Projects must have a minimum of $20 M in eligible expenditures and can be bundled together.
Community Gaming Grants	Funding for non-profit organizations (check funding program guidelines for specific eligibility requirements) for programs that help to protect and improve the environment by: (1) conserving or revitalizing local ecosystems; (2) reducing greenhouse gas emissions; (3) providing community education or engagement opportunities related to the environment and agriculture; or (4) supporting the welfare of domestic animals and/or wildlife. Grants range from $100K-250K per year.
Sitka Foundation	Funding for registered charities, universities and government agencies (qualified Canadian organizations) for projects related to coastline and watershed conservation and climate change in four key areas: (1) land, water, and ocean conservation; (2) scientific research for nature and the environment; (3) public engagement around the importance of a healthy environment; or (4) innovative conservation efforts in Canadian communities, at the local, provincial, and federal levels.
TULA Foundation	Supports various environmental programs of interest to the Foundation on a case-by-case basis.
Vancouver Foundation	Granting agency for community, social and environmental initiative for qualified Canadian organizations (charitable organizations, universities, government agencies). Granting programs change on an annual basis.
BC Conservation Foundation Small Project Fund	Funding available to Non-profits, fish and wildlife clubs (sportsmen’s associations), businesses, local/regional governments, public organizations and First Nations for projects with demonstrated positive impact for fish, wildlife and habitat, including outreach programs. Preference given to projects where BCCF is not the sole funder.
Real Estate Foundation of B.C. General Grants	Funding for First Nations, charities and societies, non-governmental organizations, universities and colleges, trade associations, local and regional governments, and social enterprises registered as C3s for sustainable land use and real estate practices in BC. Funds up to 50% of cash portion of a project.
Watershed Security Fund	Grant funding is available to support projects and initiatives that achieve actionable progress on ecosystems health, and which prioritize reconciliation, healthy communities, climate resilience and sustainable economies in any of these areas of watershed-based work. Preference given to projects that embrace UNDRIP principles.
